5-GALLON WATER PRODUCTION LINE
Heavy-Duty Automatic Returnable Jar Washing & Filling Plants from A to Z. Built to Deliver Powerful Internal Sterilization, Strict Hygiene, and Heavy-Duty Performance.
video
Who It Is For
Community / Home Delivery
Pain Points/Needs
- The recycling bins are heavily soiled (with algae and silt);
- Manual handling is extremely costly;
- And water quality safety must be ensured.
Fillron Solution
It provides a multi-stage high-pressure internal and external washing system to thoroughly remove dirt, and works in conjunction with a fully automatic heavy-duty palletizing and bagging machine to significantly reduce reliance on manual labor.
Office / Corporate Water
Pain Points/Needs
- High production capacity is required (thousands to tens of thousands of barrels per day);
- Extremely high requirements are placed on filling level and sealing tightness.
Fillron Solution
We offer high-speed linear filling and capping machines equipped with leakage detection and visual inspection to ensure zero leakage and high output.
Large Scale / Co-packer
Pain Points/Needs
- It needs to be compatible with multiple barrel types (PC/PET);
- It needs to achieve unmanned operation of the entire production line and data traceability.
Fillron Solution
It provides a fully automated cap removal and sorting system and PLC intelligent central control, supporting flexible production and integrated production line operation.
Capacity & Scope
Applicable containers
Scope and Technical Parameters: 3 to 5 gallon (11L - 18.9L) PC/PET drums
Description/Advantages: Compatible with standard bottled water sizes, and supports customized bottle shapes.
Complete production line capacity
Scope and Technical Parameters: 100 CPH - 2,400+ CPH
Description/Advantages: We offer tiered capacity solutions, ranging from small and medium-sized water plants to ultra-large production bases.
Cleaning process
Scope and Technical Parameters: Multiple rinsing processes including alkaline washing, disinfectant, and pure water.
Description/Advantages: The rinsing solution is recyclable, environmentally friendly, energy-saving, and provides thorough cleaning.
Filling accuracy
Scope and Technical Parameters: Liquid level error ≤ ±5mm
Description/Advantages: High-precision flow meters or mechanical valves are used to ensure that the water volume in each barrel meets the standard.
Compliance Standards
Scope and Technical Parameters: GB19298 / FDA / GMP
Description/Advantages: The entire system is made of SUS304/316L stainless steel and meets food-grade hygiene standards.
Line Process Flowchart
Automatic De-Capper & Leak Detector
Automatically removes old lids from recycling bins; through inflation or pressure testing, 100% of leaking or damaged empty bins are rejected.
Multi-Stage High-Pressure Internal Washer
The empty bucket undergoes multiple high-pressure sprays (alkaline washing, disinfection, and pure water), combined with an external bucket brushing machine, to thoroughly remove internal moss and external dirt.
High-Speed Linear Filling & Sealing Monobloc
Automatic bucket loading, precise quantitative filling, and automatic cap sorting and sealing. Adopting a linear structure, it operates smoothly and is easy to maintain.
Cap Heat-Shrinking & Barrel Visual Inspector
The bottle caps are sealed with heat-shrink film to prevent counterfeiting and leakage; a vision system detects the liquid level and capping status, and rejects defective products.
Automatic Large-Jar Palletizer & Bagging Machine
The system automatically stacks finished water barrels onto pallets and covers them with dustproof and waterproof woven bags, making it convenient for forklifts to enter the warehouse and for long-distance transportation.
THE COMPLETE WORKFLOW BLUEPRINT
From Automatic De-Capping to Smart Cap Heat-Shrinking. Click Each Phase Below to Explore Our High-Pressure Internal Rinsing Matrices.
01
Water Treatment System
01
Water Treatment System
Multi-media filtering, activated carbon adsorption, and advanced Reverse Osmosis (RO) membranes to transform raw water into crystal-clear mineral or pure water conforming to global standards.
02
5 Gallon Filling System
02
5 Gallon Filling System
High-pressure rinsing combined with double vacuum pre-evacuation (especially for beer) to flush out air and oxygen residues.
03
Blowing Machine For 5 Gallon
03
Blowing Machine For 5 Gallon
Advanced electronic filling valves ensure zero flavor loss, strict CO2 volume preservation, and bubble-free, high-precision level control.
04
Post-Packaging System for 5 Gallon
04
Post-Packaging System for 5 Gallon
Immediate capping with warm-water jet bubbling (for beer) to push out headspace air before crown corking or aluminum screw capping.
Plant & Utility Requirements
Factory space and load-bearing capacity
- Space: Reservation is required for the area of the drum washing machine, heat shrink machine and palletizing area.
- Load-bearing capacity: The floor of the palletizing area needs to be reinforced to withstand the pressure of heavy pallets.
Power requirements
- 380V / 50Hz / 3Phase
- Total power depends on production capacity and number of filling heads (usually 10KW - 50KW).
Steam and compressed air
- Steam: Used in heat shrink machines (if steam heating is used).
- Compressed air: A refrigerated dryer is required to ensure that pneumatic components and leak detection air sources are clean and dry.
Water and Drainage
- Raw water: Must meet the water requirements for cleaning and filling.
- Drainage: Drum washing machines consume a lot of water, so a well-planned drainage system and sewage treatment system are necessary.
Configuration & Options
Standard Economy | High-Efficiency Automatic | Industrial Ultra-High Speed |
100 - 300BPH | 450 - 900BPH | 1200 - 2400+BPH |
Single-station cap removal + basic cleaning + 1-2 head filling; semi-automatic post-packaging. | Fully automatic cap removal and leak detection + multi-stage high-pressure cleaning + 3-6 head linear filling; automatic heat shrinking and palletizing. | Rotary high-speed filling + AI vision full inspection + robot heavy-duty palletizing; MES system integration. |
Suitable for: Start-up water plants and community water stations. | Suitable for: medium and large-sized drinking water brands and regional water plants. | Suitable for: Leading water companies and large-scale OEM manufacturing bases. |
Turnkey Project Steps
01
Needs Assessment and Water Quality Analysis
Confirm the target production capacity, barrel type and specifications, and raw water quality, and customize the cleaning and filling process.
02
Overall Line Layout Design
The key focus is on planning the logistics flow of the drum washing and drainage, empty drum transportation, and palletizing areas.
03
Equipment Manufacturing and FAT Acceptance
The machine was tested with water inside the factory to verify the cleaning effect, filling accuracy and palletizing stability.
04
On-site installation and SAT commissioning
Engineers will come to your location to install the equipment and assist with leak testing and capping torque calibration.
05
Training and Lifetime After-Sales Service
We provide equipment operation and maintenance training; 24-hour online technical support; and lifetime spare parts supply.
Customize Your Production Line
![600BPH Gallon Water Production Line]( "600BPH Gallon Water Production Line")
600BPH Gallon Water Production LineThe line runs smoothly with well-coordinated washing, filling and capping. We are very satisfied with its efficiency.Inquire Now

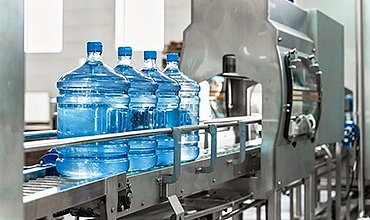

![300BPH 5 Gallon Production Line]( "300BPH 5 Gallon Production Line")
300BPH 5 Gallon Production LineThe line is compact and stable, providing reliable bottle washing and filling with easy operation.Inquire Now
FAQ
The empty bins we collect are very dirty (with moss and sand). Can your washing machine clean them properly?
Absolutely no problem. Fillron's multi-stage high-pressure internal washing machine is specifically designed for handling heavily contaminated recycling bins. We use high-pressure spraying combined with specialized brushes, along with multiple processes including alkaline washing, disinfectant, and pure water, to thoroughly remove internal algae and external dirt. Furthermore, the cleaning solution is recyclable, making it both environmentally friendly and reducing your operating costs.
How to prevent leaking or cracked barrels from entering the filling process?
We include an automatic leak detector as standard after removing the cap. It fills the container with pressurized gas and uses sensors to detect pressure changes, automatically rejecting empty containers with micro-cracks or leaks, thus preventing the waste of water and cleaning solution by using substandard containers.
5-gallon bottles of water are very heavy. Does the subsequent packaging process require a lot of manual labor?
No. Fillron provides fully automatic heavy-duty palletizing and bagging machines. The palletizing machine can automatically stack filled water bottles neatly according to a preset stack pattern, while the bagging machine automatically covers the entire stack of water bottles with dustproof and waterproof woven bags. This completely replaces traditional manual handling and bagging, significantly reducing labor costs and safety risks.
How is the filling accuracy guaranteed? Is it possible for the water volume in each barrel to be different?
Our high-speed linear filling machine uses high-precision flow meters or precision mechanical valves, and the filling accuracy can be controlled within ±5mm. At the same time, the equipment is equipped with a no-bucket-no-fill function to ensure that the water volume in each bucket is accurately compliant, avoiding customer complaints.
Is the equipment compatible with buckets of different sizes?
Yes. Our equipment is designed with flexible production in mind. If you need to produce both 3-gallon and 5-gallon sizes, you can quickly changeover on the same machine by simply changing a few dials, guides, and star wheels.
What after-sales and technical support services does Feirong provide?
We provide full lifecycle after-sales support: free on-site engineer guidance for installation and commissioning; comprehensive training on equipment operation and daily maintenance for your operators; 24/7 online technical support; and a complete spare parts inventory to ensure that vulnerable parts are shipped within 48 hours.
